Sudenga Grain Equipment

Products

Products

Sudenga Grain Equipment


Ag Hub Industries supplies high quality Hoss Augers by Sudenga Industries. While maintaining a heavy duty and robust design, these augers come in a range of sizes with either painted or galvanised finishes.

Portable Grain Auger

HOSS AUGER

Loading a large bin? Piling grain in flat storage? Looking for high capacities and extreme reliability? You can rely on the HOSS.


Available in lengths from 57’ to 112’.


The HOSS can move grain at speeds up to 11,000 BPH. Available in painted or galvanized finishes.


  • 8”, 10” and 13” diameter tubes
  • Capacities to 11,000 bushels per hour
  • 8” and 10” galvanized or painted finish; 13” painted finish
  • Hydraulic cylinder scissor lift
  • Heavy duty top and side cable trussing (8” and 10”); rigid bridge top truss and cable side truss (13”)
  • Large, low profile, auger hopper. Single hopper (8”/10”); Twin screw hopper (10”/13”)
  • Lengths available from 57’ to 112’
  • Low transport height (under 14’) and width
  • Twin cylinder hydraulic scissor lift (13” only)
  • Narrow transport width features convenient extendable axles (13” only; 92’-112’ models)

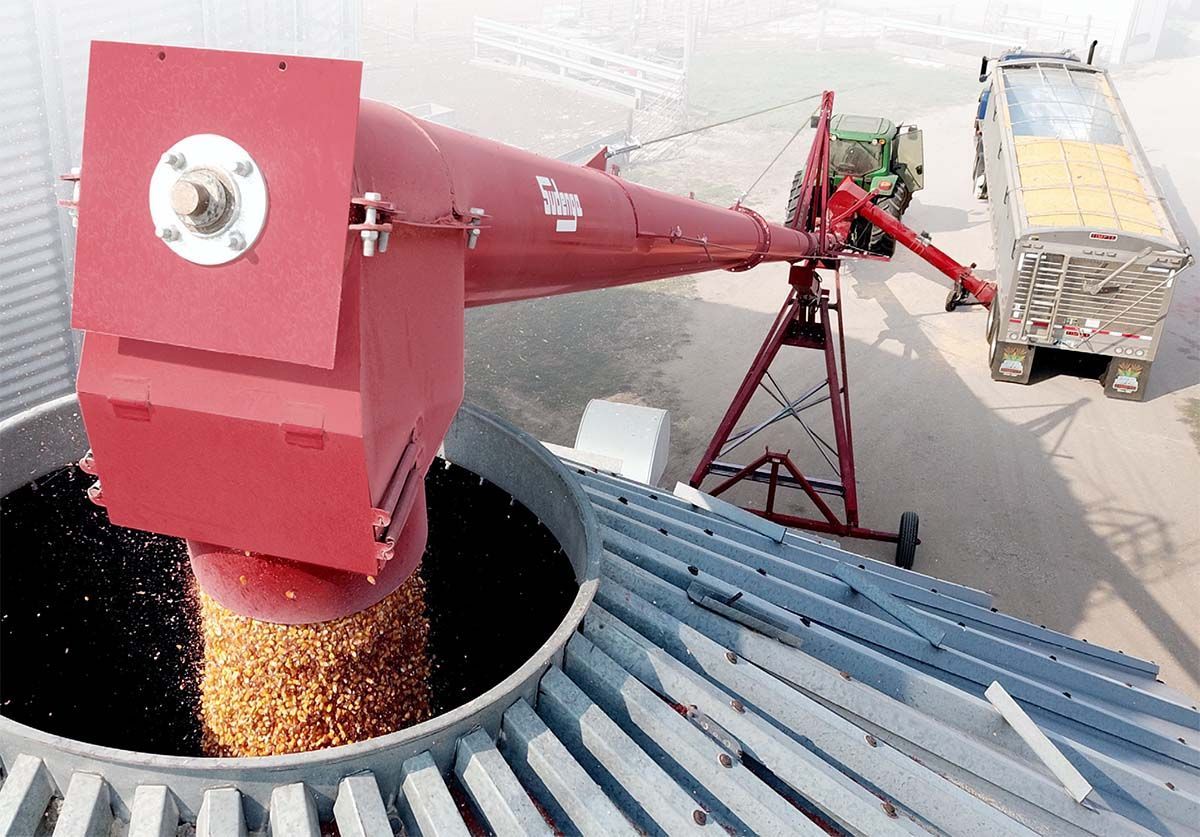

Sudenga Hoss Auger from AgHub Grain Storage Solutions

HOSS Auger

Capacities and Specs

8” AUGERS 10” AUGERS 13” AUGERS
Tube Lengths 57', 61', 65', 71' 61', 66', 71', 76', 81' 72', 82', 92’, 102’, 112’
Capacities 3,200 BPH 7,000 BPH 11,000 BPH
Tube Gauge 14 12 12
Tube Finish Painted or galvanized Painted or galvanized Painted
Flighting 3/16” 3/16” UltraFlyte 1/4" UltraFlyte
8” 10” 13”
1/4" Ga. Flighting Opt Opt Standard
Discharge Spout Opt Opt Opt
Overflow Spout Opt Opt Opt
Bucket Spout Opt Opt Opt
4' Screen - Hopper Incline Tube Opt Opt -
Low Profile Twin Screw Hopper - Opt Opt
Power Rotation for Hopper - Opt Opt
Side Drive Kit* Opt Opt Opt

HOSS Auger

Accessories and Options

* Puts tractor at 90° to auger for more hopper swing.

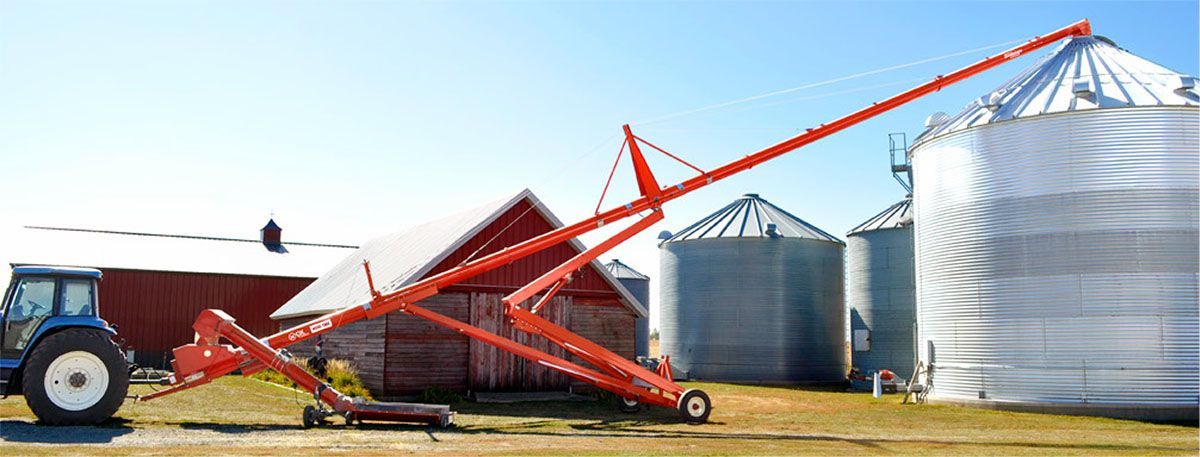

Hoss Auger from Sudenga Grain Equipment and AgHub Grain Storage Solutions

Driveline

Direct constant velocity joint on PTO-to-flighting connection; shear pin protection.

Transport

Hydraulic scissor lift; 4-bolt rims (8'' augers), 6-bolt rims (10'' all sizes/13” 72’-82’ augers), 8-bolt rims (13’’ 92’-112’ augers); roller bearings for road transport. Transport widths: 10' (8'' augers) and 10½' (10''/13” augers). Transport height under 14’.

Swing Hopper

Mechanically driven by roller chain and double gearbox from auger flight; gimbal mount is easy to position; sealed hopper joint keeps weather out and grain in; 10'' and 13'' hoppers are hinged at the hopper to incline joint. CV joint is standard on 10'' and 13''. Hopper intake flighting for single screw is 5/16'' (8”) and .25 UltraFlyte (10”). Flighting for twin screw is 3/8” thick (10”/13”).

Electric hopper rotate kit

Moves the hopper into and out of loading position. Optional on 10” and 13” augers.

For other Sudenga products, including belt conveyers, drive over hoppers, super scoop unloaders and more, contact Jason on 0418 695 933.
