Superior Grain Silos


Ag Hub Industries offers a full range of Superior farm tested grain silos and grain handling equipment. Engineered and manufactured to exact specifications with state of the art equipment. Superior have an outstanding reputation for quality, strength of product, innovation and integrity.

Silos

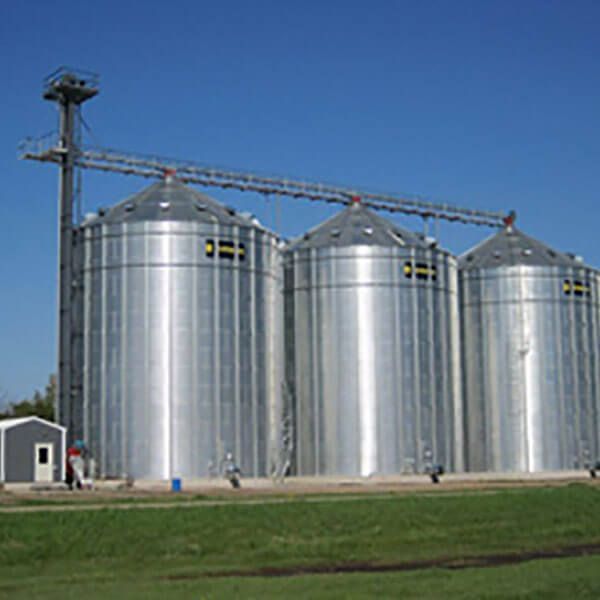

Commercial Silos

The Superior Commercial Bin gives you maximum storage capacities. Heavy duty stiffeners carry the vertical loads to the foundation and resist the wind loads more effectively than unstiffened silos.


The Superior Stiffener is deeper and stronger than other stiffeners. A one piece roof panel is provided on silos through 60′ diameter.


Ag Hub Industries can design and construct a commercial system to meet your needs.

Capacity Information
Commercial Silos from Ag Hub Industries

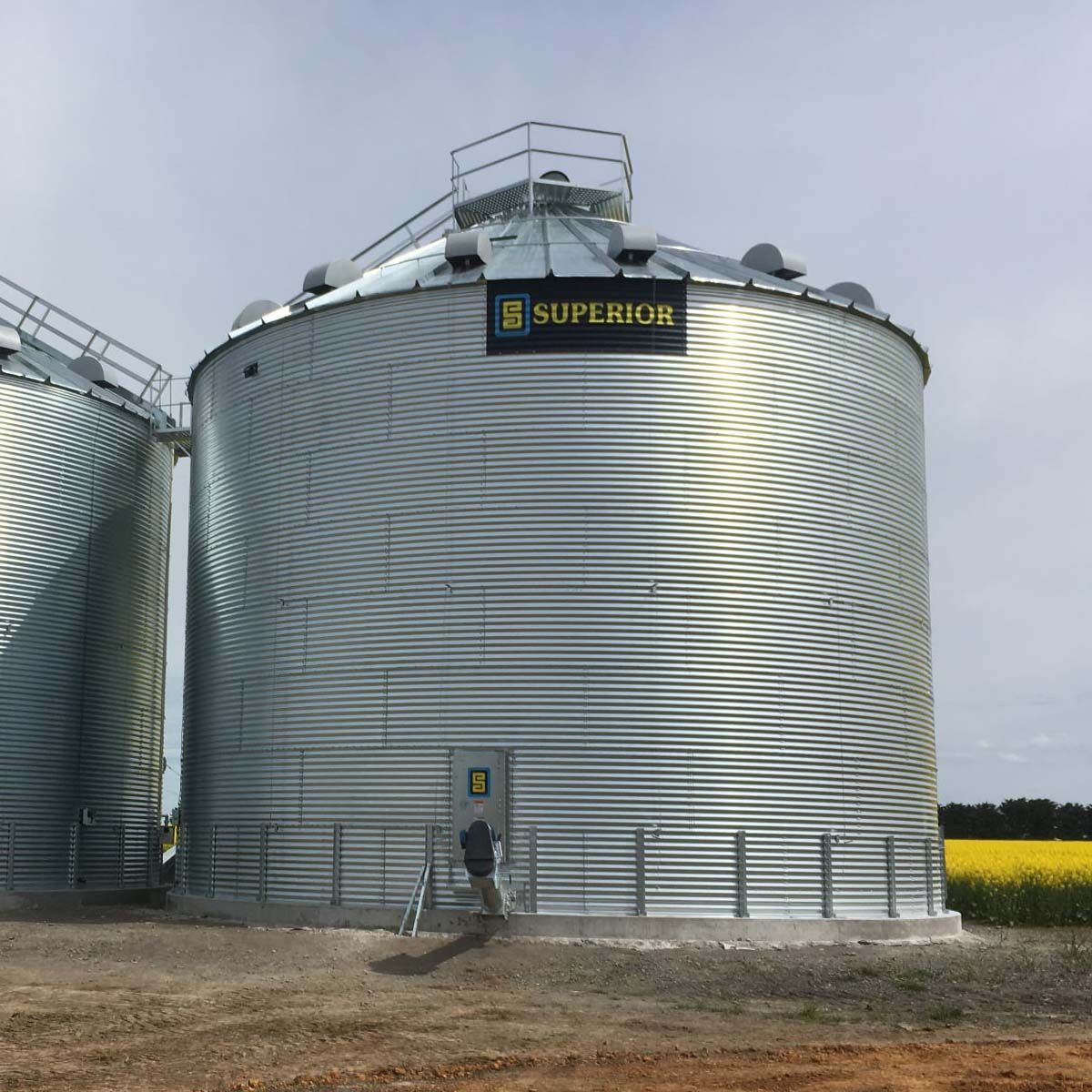

Flat Bottom Silos

At Ag Hub Industries we offer a full range of Superior Flat Bottom grain silos, with 100% perforated floor aeration. Channel aeration is also available.


Our farm silos range from 300-2000mt in capacity for stiffened and un-stiffened silos. Superior silos are sealed to Australian Standards (AS 2628-2010). They're gas tight for fumigation practices to limit the chances of pest infestations.

Flat Bottom Silos from Ag Hub Grain Storage Solutions

Silo Specifications

Bin Diameter Eave Height Range (Metres) Peak Height Range (Metres) Max Capacity Range (Cubic Metre) Max Capacity Range (Metric Tons)
42' (12.8m) 10.08-26.85 14.53-30.76 1,425-3,560 1,283-2,916
48' (14.63m) 10.08-26.85 14.53-31.29 1,888-4,676 1,546-3,830
52' (16.45m) 10.08-27.97 15.14-33.02 2423-6,188 1,985-5.068
60' (18.28m) 10.08-29.08 15.29-34.29 3033-7,971 2,484-6,529
75' (22.86m) 10.08-29.08 16.94-35.94 4,903-12,619 4.016-10,335
90' (27.43m) 10.08-30.20 18.36-38.48 7,296-19,061 5,976-15,611
105' (32.00m) 10.08-30.2 19.71-39.83 10,252-26,264 8,397-21,512

Silo Features

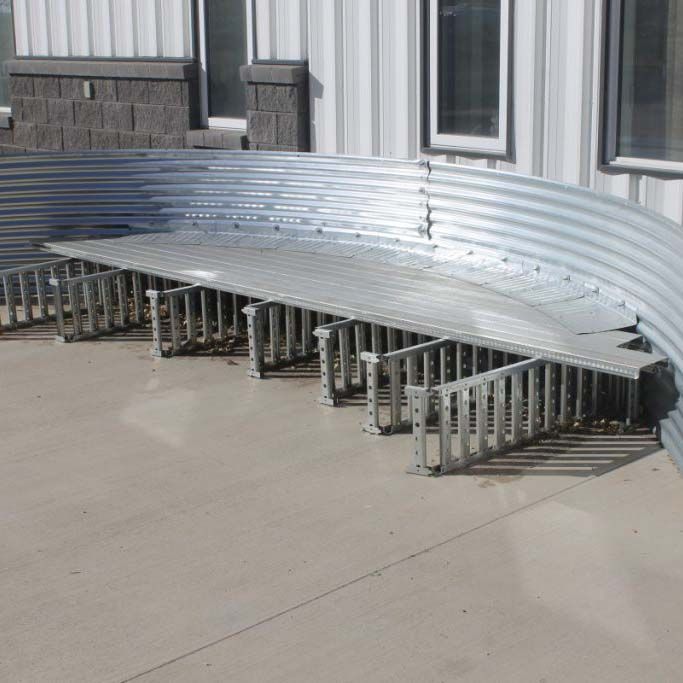

Silo Floors

The NEW “SYNTIRO” support system is our latest in aeration floor supports.


The quick connections and long spans means a fast and easy install. The “SYNTIRO” is engineered to aid in efficient airflow and use half the typical number of support rows. After installing, the flooring simply lays flat on the support without having to snap in, allowing faster install, and accommodating uneven concrete floors.


The “SYNTIRO” support can also span in floor tunnels. SYNTIRO’S locking feature allows the supports to be quickly connected and provides strength and support without movement. When overlapping supports, our spring steel clips keep the supports together. Their easy clip on style will not pop off during installation because of the jagged teeth that grip the metal for a secure lock.

Silo Floor System from Ag Hub Industries

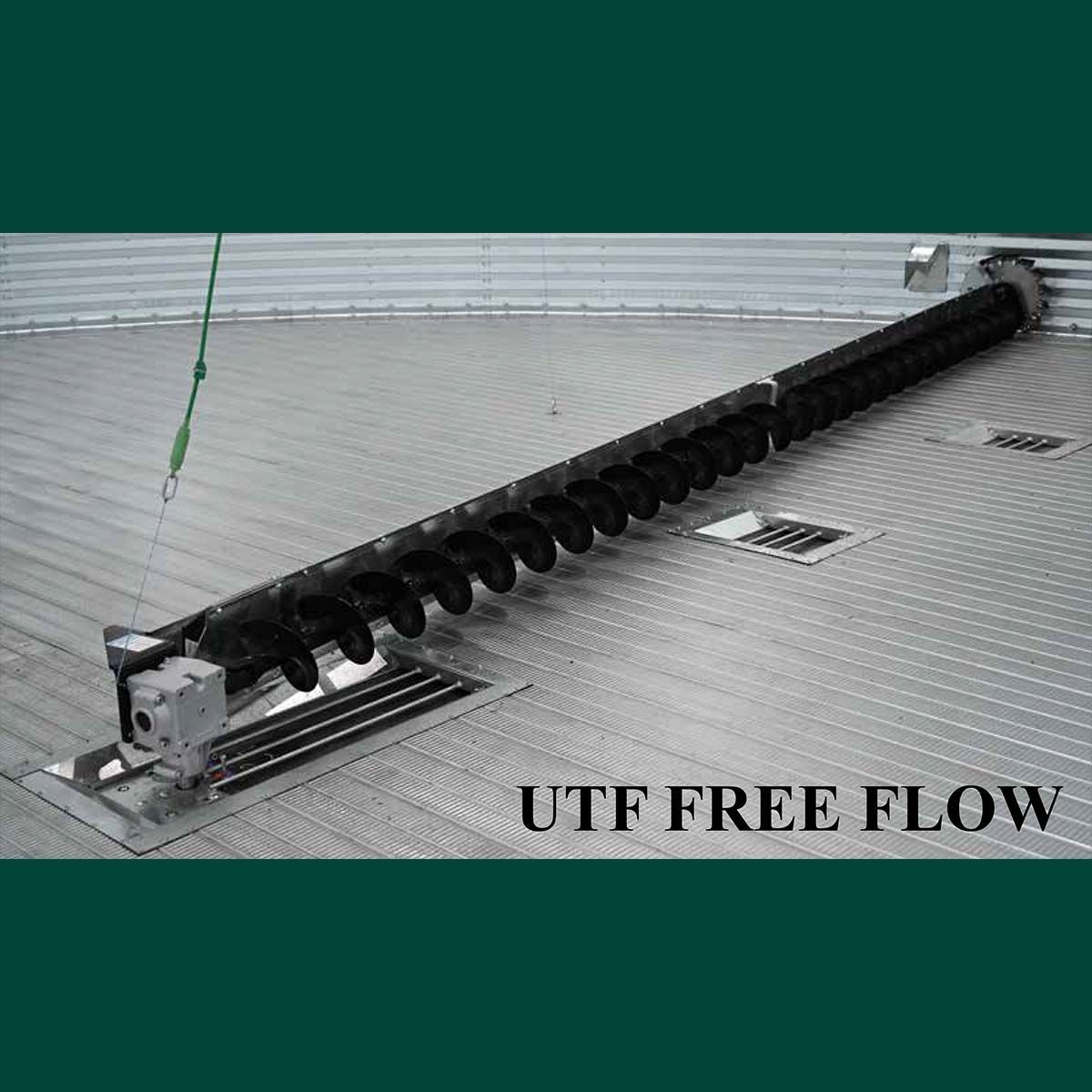

Springland Bin Sweeps and Unloaders

High capacity unloading at 5000 to 6000 bushels, (136-163MT), per hour.


The Springland U-Trough design moves more material than traditional round tubes at the same horsepower, with less chance of grain damage.

Bin Sweeps from Ag Hub Grain Storage Solutions

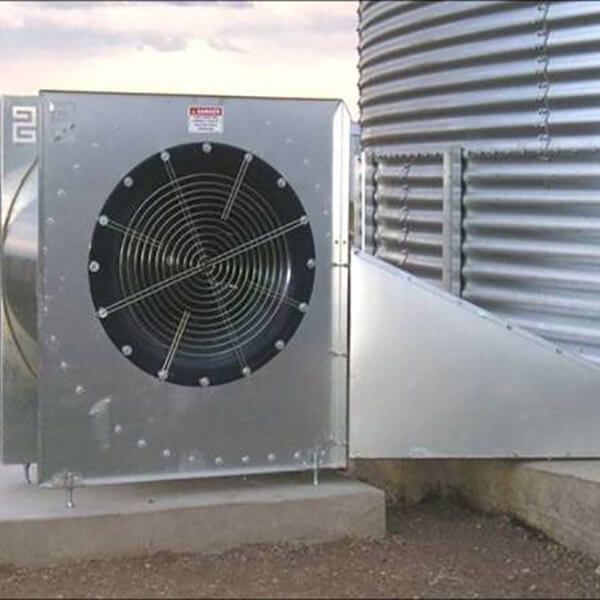

Fans

Adequate and even airflow throughout the grain silo is critical to proper cooling, storage and natural air drying.


Our heavy duty and quiet centrifugal fans feature airfoil blades, close tolerances and dynamic balancing to give you maximum airflow and years of reliable performance. All housings are made of heavy duty galvanized steel to resist rust and provide long life. When natural air drying isn’t enough, a high quality heater can dramatically increase your drying speed when combined with a high performance fan and stirring machine

Silo Fans from Ag Hub Industries

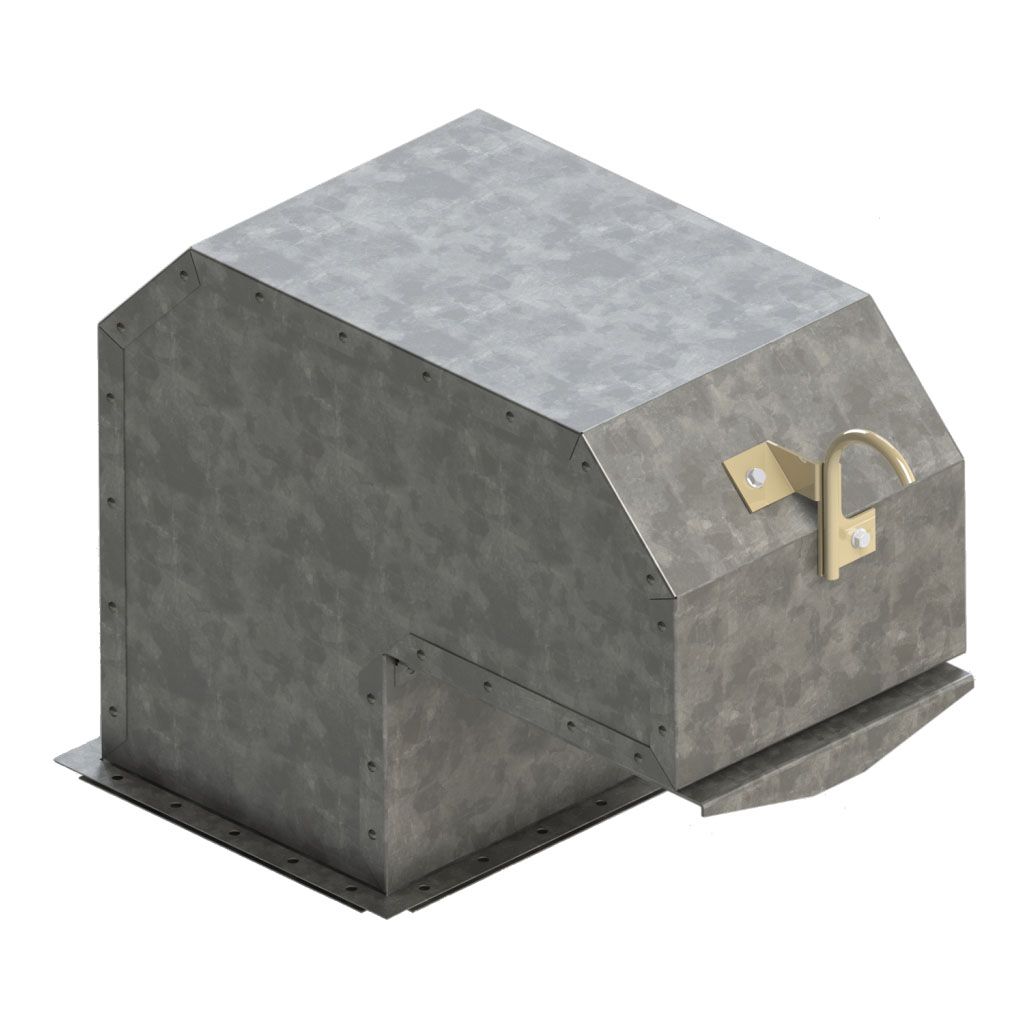

Sealable Silo Roof Vents

Superior’s vent and closure system is at the cutting edge of grain aeration and fumigation.


Our vents allow for maximum airflow and our unique vent closure design creates a gas tight seal. The closure flaps are connected to a pulley system controlled from the ground which will hold the flap open when the silo is in aeration phase and then shut up to a gas tight hold against a rubber gasket (gasket not shown in photo) in the fumigation phase. By not exposing the flap and gasket to the outside elements the seal quality will be maintained.


Sealed silos require suitable ventilation when in use with aeration systems. Agridry manufacture sealable roof vents that are designed to be retrofitted to most makes and models of sealed silo. They are able to be sealed, enabling effective fumigation of the silo when required.

Sealable Silo Roof Vents from Ag Hub Industries
